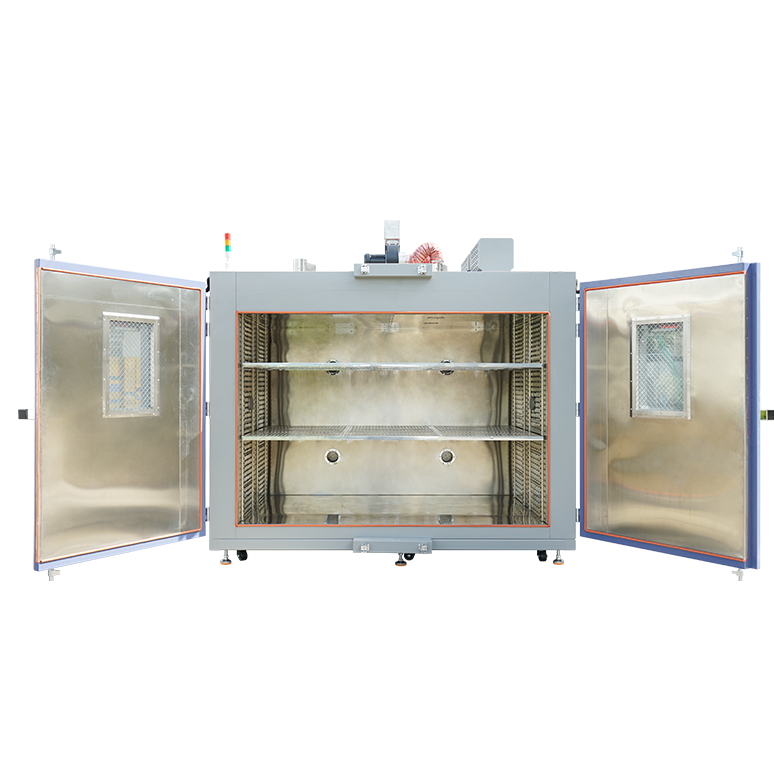

Double Doors High-Temperature Test Chamber, also known as a floor-standing high-temperature aging chamber, is suitable for performance testing of various products or materials under high-temperature conditions. It can be used by scientific research institutions, product quality inspection centers, and industrial and mining enterprises to conduct aging, curing, drying, baking, and heat treatment tests on samples.
WBE Double Doors High-Temperature Test Chamber: This test exposes samples to a high-temperature, dry environment to determine the suitability of military/civilian equipment for storage and operation under high-temperature conditions. It is used for screening, aging tests, life tests, accelerated life tests, and evaluation tests of LEDs, components, and complete machines, and plays an important role in the verification of failure analysis.
Application areas:
production design, improvement, evaluation and inspection in defense industry, aerospace industry, automation components, automotive parts, electronic and electrical components, plastics, chemicals, textiles and other fields. ...
Double Doors High Temperature Test Chamber Feature:
| Model | WBE-GW1000L A/B/D |
WBE-GW1500L A/B/D |
WBE-GW2250L A/B/D |
WBE-GW3000L A/B/D |
WBE-GW4950L A/B/D |
|
| Volume（L） | 1000 L | 1500 L | 2250 L | 3000 L | 4950 L | |
| Inner Size（mm） | Width | 1000 | 1000 | 1500 | 2000 | 2200 |
| Depth | 1000 | 1000 | 1000 | 1000 | 1500 | |
| eightH | 1000 | 1500 | 1500 | 1500 | 1500 | |
| Outer Size（mm） | Width | 1400 | 1400 | 2100 | 2600 | 2600 |
| Depth | 1200 | 1450 | 1200 | 1200 | 1900 | |
| eightH | 1730 | 2280 | 2200 | 2200 | 2080 | |
| Power | AC380V±10% 50HZ 3∮4W+E | |||||
| Performance | Temp Range | A：RT+15℃～+150℃，B：RT+15℃～+250℃，D：RT+15℃～+300℃ | ||||
| Temp Fluctuation | ≤±0.5℃ | |||||
| Temp Uniformity | ≤2.0℃% | |||||
| Temp Deviation | ≤±2.0℃% | |||||
| Heating Rate | ≥5℃/min (average over full range) | |||||
| Material | Inner Chamber | SUS #304 Stainless Steel | ||||
| External Chamber | Cold-rolled steel plate + double-sided electrostatic spray coating process, WBE Weibang Standard Blue-Gray | |||||
| Cooling Method | Natural cooling / Forced ventilation cooling | |||||
