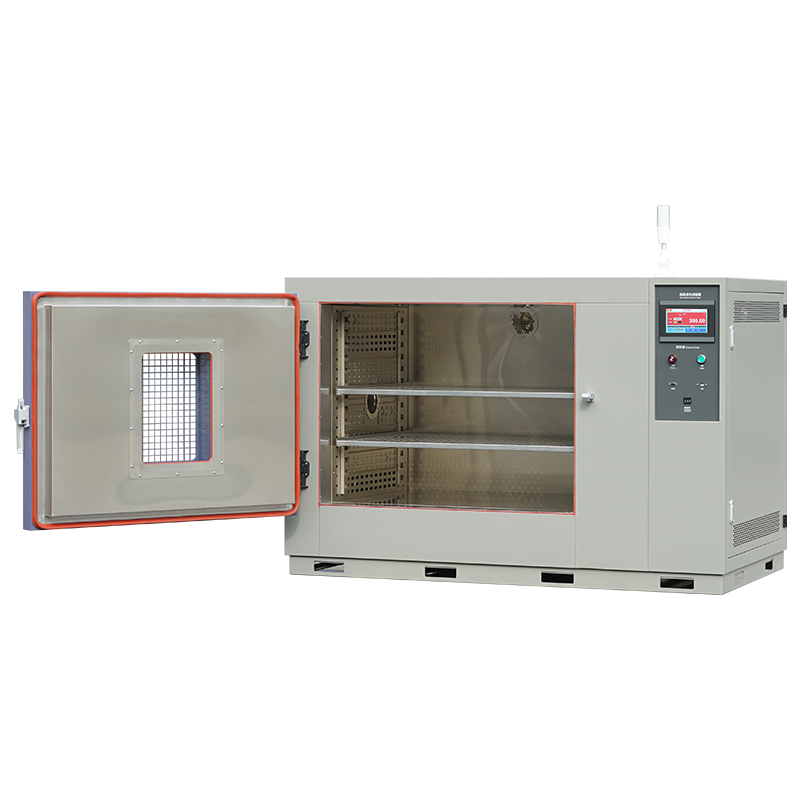

WBE Horizontal High-Temperature Aging Test Chamber dry environment to evaluate the suitability of military and civilian equipment for storage and operation under such conditions. It is extensively used for screening, aging tests, life tests, accelerated life tests, and performance evaluation of LEDs, components, and complete machines, playing a critical role in failure analysis and verification.
Primary Application Fields:
Research & development, design, improvement, evaluation, and inspection in industries including defense, aerospace, automotive parts, automation components, electronics and electrical appliances, plastics, chemicals, and textiles.
Test Standards:
• GB/T 3512-2014 / ISO 188:2011 Vulcanized rubber or thermoplastic rubber—Accelerated aging and heat resistance tests in hot air
• GB/T 9871-2008 / ISO 6914:2014 Determination of aging properties of vulcanized rubber or thermoplastic rubber—Tensile stress relaxation test
• GB/T 2951.12-2008 / IEC 60811-1-2:1985 Common test methods for insulating and sheathing materials of electric and optical cables—Part 12: General test methods—Thermal aging methods
• JB/T 4278.6-2011 Verification methods for testing instruments and equipment of rubber and plastic insulated wires and cables—Part 6: Natural ventilation thermal aging test chamber
• JB/T 7444-2018 Air thermal aging test chamber
• GB/T 7141-2008 Plastics—Test methods for thermal aging
• Also meets other relevant test specifications such as GB, VDE, and JIS.
Product Features:
► Ultra-fine glass fiber insulation: Effectively minimizes heat loss, ensuring long-term temperature stability inside the chamber.
► Powder-coated exterior: Provides excellent corrosion resistance, extending equipment service life while maintaining a lasting appearance.
► High-temperature silicone rubber sealing strip: Ensures superior door sealing to prevent gas leakage and maintains a precisely controlled test environment.
Chamber Parameter
| Horizontal High-Temperature Aging Test Chamber |
| Model |
WBE-GW216L
A/B/D |
WBE-GW512L
A/B/D |
WBE-GW640L
A/B/D |
WBE-GW1000L
A/B/D |
WBE-GW1500L
A/B/D |
| Volume（L） |
216 L |
512 L |
640 L |
1000 L |
1500 L |
| Inner Size（mm） |
Width |
600 |
800 |
800 |
1000 |
1000 |
| Depth |
600 |
800 |
800 |
1000 |
1000 |
| eightH |
600 |
800 |
1000 |
1000 |
1500 |
| Outer Size（mm） |
Width |
1000 |
1200 |
945 |
1400 |
1400 |
| Depth |
800 |
1000 |
1235 |
1200 |
1450 |
| eightH |
1180 |
1360 |
1670 |
1730 |
2280 |
| Power |
AC380V±10% 50HZ 3∮4W+E |
| Performance |
Temp Range |
A：RT+15℃～+150℃，B：RT+15℃～+250℃，D：RT+15℃～+300℃ |
| Temp Fluctuation |
≤±0.5℃ |
| Temp Uniformity |
≤2.0℃% |
| Temp Deviation |
≤±2.0℃% |
| Heating Rate |
≥5℃/min (average over full range) |
| Material |
Inner Chamber |
SUS #304 Stainless Steel |
| External Chamber |
Cold-rolled steel plate + double-sided electrostatic spray coating process, WBE Weibang Standard Blue-Gray |
| Cooling Method |
Natural Cooling / Forced Air Cooling |
