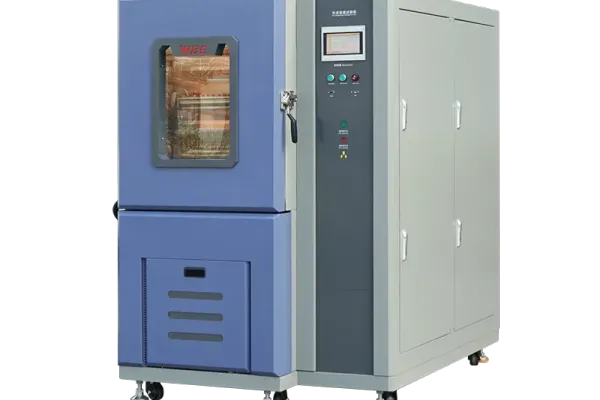

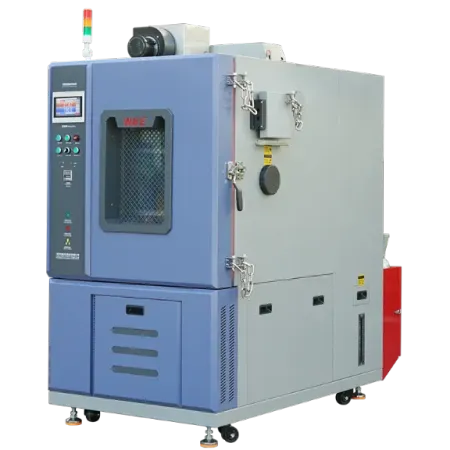

The Critical Role of a Thermal Shock Test Chamber in Conformance Testing.

For electronic assemblies, a thermal shock test chamber is one of the most critical tools for ensuring long-term reliability. Every circuit board is a complex composite of materials with mismatched CTEs, including the FR-4 substrate, copper traces, solder mask, and various electronic components. As the assembly powers up and heats up, or is exposed to external temperature swings, these materials expand and contract at different rates. This puts a constant strain on the solder joints, which act as both the electrical and mechanical connection for the components. Thermal shock testing accelerates this fatigue mechanism, allowing engineers to quickly assess the lifetime of these critical connections. It is the best way to validate that an assembly's design and manufacturing process are robust enough to survive years of real-world thermal cycling without failure.

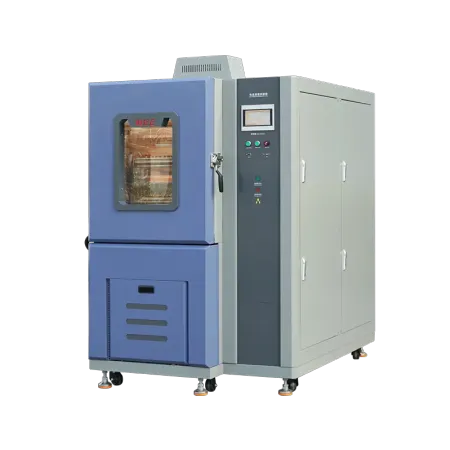

The primary purpose of a thermal shock test chamber is to discover and analyze product failures caused by sudden, extreme temperature changes. Unlike slower thermal cycling, the near-instantaneous temperature change, or "shock," creates immense internal stress within a product, especially at the interface of different materials that expand and contract at different rates (e.g., a silicon chip on a circuit board). This test is designed to quickly precipitate failures that might take a long time to occur under normal operating conditions. It is an aggressive form of accelerated life testing used to verify the ruggedness of components and assemblies, ensuring they are robust enough to survive unexpected, severe thermal events in their intended application, from military hardware to automotive sensors.

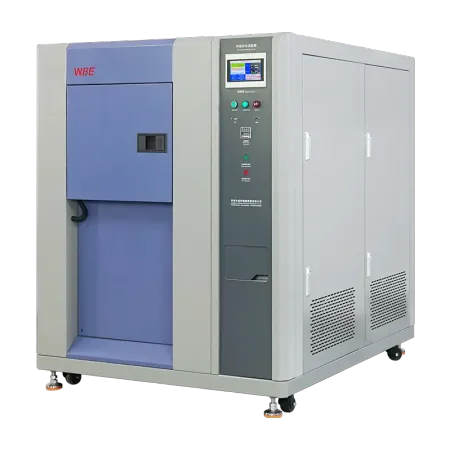

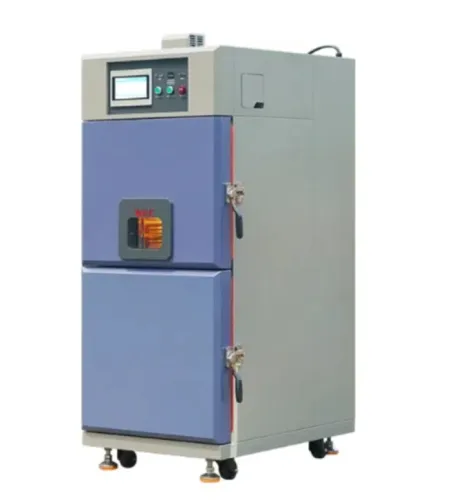

When evaluating a thermal shock test chamber, two specifications are paramount: transfer time and recovery time. Transfer time is the total time it takes for the product basket to move from one temperature zone to the other. Most industry standards, such as MIL-STD-883, require this to be extremely fast, typically under 10 seconds, to ensure a true "shock" is delivered. Recovery time is the time it takes for the zone's air temperature to return to its specified setpoint after the product has been introduced. For example, when the cold product enters the hot zone, the air temperature will temporarily drop. A powerful thermal shock test chamber, like those made by WBE, has a short recovery time, ensuring the product is exposed to the correct temperature for the required duration of the test.

Many high-reliability industries have developed standards that mandate the use of a thermal shock test chamber to qualify products. The most well-known is the MIL-STD-883, Method 1010, which is used for military and aerospace microelectronics. The JEDEC standard JESD22-A106 is widely used in the commercial semiconductor industry for testing plastic-encapsulated devices. For the automotive industry, the AEC-Q100 and AEC-Q200 standards for integrated circuits and passive components, respectively, include rigorous thermal shock test requirements. The International Electrotechnical Commission's IEC 60068-2-14 also provides a general guideline for thermal shock testing. WBE designs its thermal shock test chamber portfolio to be fully compliant with the stringent requirements of these and other major international standards.
