WBE Delivers Industry-Leading Ramp Rates and Precision.

The primary benefit of using a rapid rate temperature exchange chamber for accelerated stress testing is a massive compression of time. It allows manufacturers to simulate months or even years of a product's thermal life in just a few days or weeks. This drastically shortens the design validation phase, leading to a faster time-to-market. Secondly, it is exceptionally effective at revealing latent or hidden defects—such as weak solder joints, micro-cracks in components, or faulty bonds—that would not be found through simple functional testing. By finding and fixing these issues before a product ships, companies can significantly improve field reliability, reduce warranty costs, and protect their brand reputation. The process provides invaluable data that feeds back into the design and manufacturing process, leading to more robust and higher-quality products overall.

The stresses induced by a rapid rate temperature exchange chamber are highly effective at revealing specific types of failure modes. The most common is solder joint fatigue. The repeated expansion and contraction cause micro-cracks to form and propagate through solder connections, eventually leading to an open circuit. Another common failure is via fatigue in printed circuit boards, where the plated copper barrel of a through-hole cracks. Component-level failures are also common, such as cracking of ceramic capacitor bodies or failure of plastic component packaging. The test can also reveal issues with conformal coatings, connectors, and cable assemblies. Identifying which failure mode occurs is just as important as finding the failure itself, as it provides engineers with the precise information they need to address the root cause in the design or manufacturing process.

While both are used for thermal stress testing, a rapid rate temperature exchange chamber and a thermal shock chamber operate on different principles. A rapid rate chamber uses a single test space. The product remains stationary while the air temperature around it is rapidly heated and cooled. This provides a controlled, albeit fast, ramp between temperatures. In contrast, a thermal shock chamber uses at least two separate chambers—one hot and one cold—with an elevator mechanism that physically moves the product between them. This transfer happens in seconds, subjecting the product to an almost instantaneous change in temperature. Thermal shock is a more severe and aggressive test, while the rapid rate temperature exchange chamber offers more control over the ramp rate and is often used for Environmental Stress Screening (ESS) protocols that specify a particular ramp rate in °C/minute.

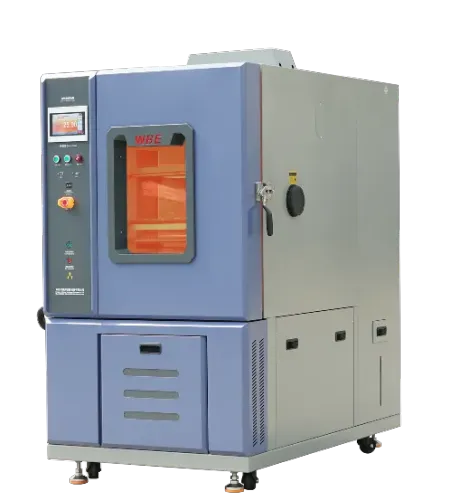

A rapid rate temperature exchange chamber, often called a fast temperature change or thermal cycling chamber, is defined by its ability to change its internal air temperature at a very high speed or "ramp rate." While standard environmental chambers might change temperature at 1-3°C per minute, a rapid rate chamber is specifically engineered to achieve rates of 5°C, 10°C, 15°C, or even 20°C per minute. This capability is achieved through a combination of powerful heating elements, high-capacity multi-stage refrigeration systems, and high-volume fans that circulate air efficiently. The primary function is not just to reach a temperature, but to transition between temperature setpoints as quickly as possible to induce thermal stress on a product, making it a crucial tool for accelerated reliability testing and Environmental Stress Screening (ESS).
