Rapid Rate vs. Thermal Shock: Choosing the Right Test.

While both are used for thermal stress testing, a rapid rate temperature exchange chamber and a thermal shock chamber operate on different principles. A rapid rate chamber uses a single test space. The product remains stationary while the air temperature around it is rapidly heated and cooled. This provides a controlled, albeit fast, ramp between temperatures. In contrast, a thermal shock chamber uses at least two separate chambers—one hot and one cold—with an elevator mechanism that physically moves the product between them. This transfer happens in seconds, subjecting the product to an almost instantaneous change in temperature. Thermal shock is a more severe and aggressive test, while the rapid rate temperature exchange chamber offers more control over the ramp rate and is often used for Environmental Stress Screening (ESS) protocols that specify a particular ramp rate in °C/minute.

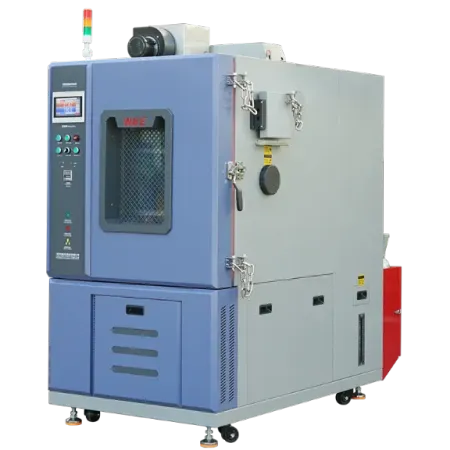

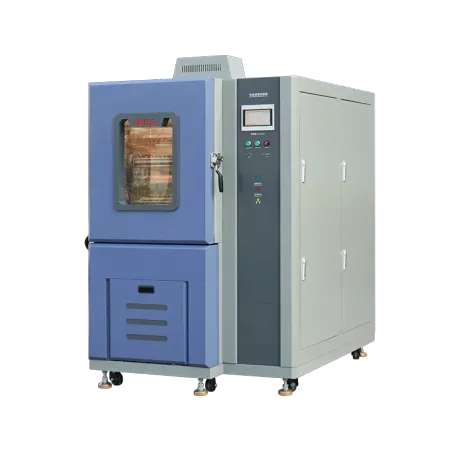

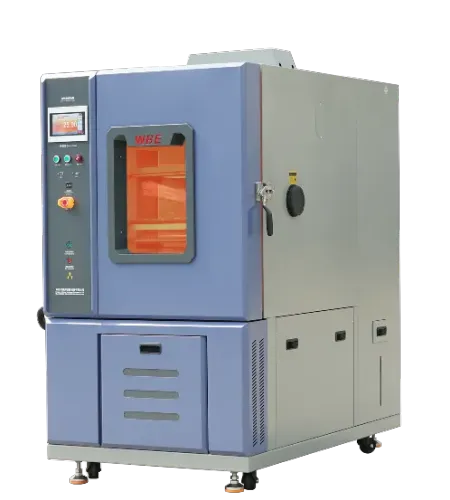

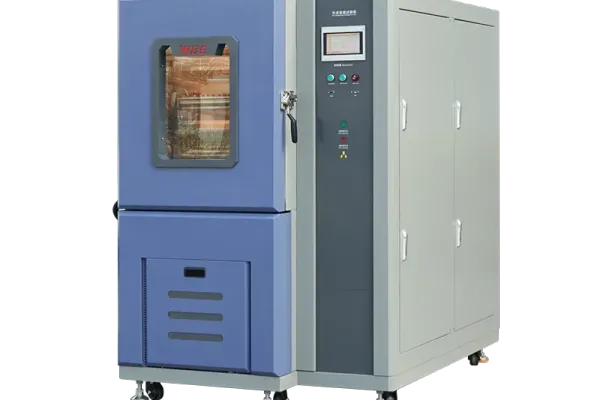

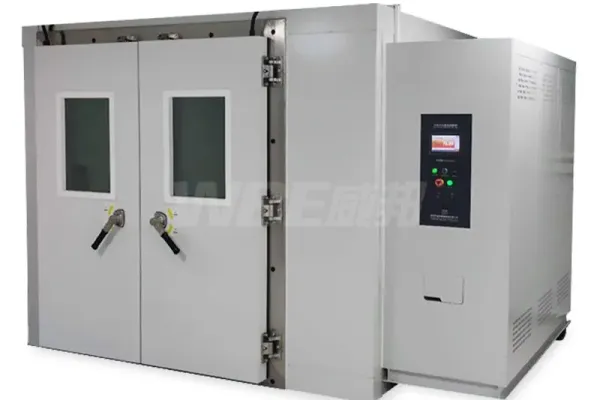

A rapid rate temperature exchange chamber, often called a fast temperature change or thermal cycling chamber, is defined by its ability to change its internal air temperature at a very high speed or "ramp rate." While standard environmental chambers might change temperature at 1-3°C per minute, a rapid rate chamber is specifically engineered to achieve rates of 5°C, 10°C, 15°C, or even 20°C per minute. This capability is achieved through a combination of powerful heating elements, high-capacity multi-stage refrigeration systems, and high-volume fans that circulate air efficiently. The primary function is not just to reach a temperature, but to transition between temperature setpoints as quickly as possible to induce thermal stress on a product, making it a crucial tool for accelerated reliability testing and Environmental Stress Screening (ESS).

WBE's leadership in the field of the rapid rate temperature exchange chamber stems from a deep-seated engineering advantage developed over nearly three decades. Our expertise is not just in one area, but in the holistic integration of multiple critical subsystems. We have perfected the design of high-efficiency cascade refrigeration systems that provide maximum cooling power in a compact footprint. Our aerodynamicists have developed airflow management systems that ensure temperature uniformity even at high circulation rates, preventing hot or cold spots within the chamber. Most critically, our control engineers have written proprietary software algorithms that intelligently manage the heating and cooling systems to achieve fast, linear ramp rates without dangerous temperature overshoots. This synergistic approach to design—where the refrigeration, airflow, and control systems are all optimized to work together—is the reason why a WBE rapid rate temperature exchange chamber delivers superior performance, reliability, and precision.

The rapid rate temperature exchange chamber is an indispensable tool for testing printed circuit board (PCB) assemblies. Modern PCBs are complex structures with many different materials (FR-4, copper, solder mask, components) all having different coefficients of thermal expansion (CTE). As the assembly is rapidly heated and cooled, the mismatch in CTE creates mechanical stress on every part of the board. This stress is particularly concentrated on solder joints, plated through-holes (vias), and the pads where components are mounted. Rapid thermal cycling is the most effective way to identify a propensity for solder joint fatigue, via cracking, or pad cratering. By testing sample boards from a production run, manufacturers can quickly verify the integrity of their assembly process and ensure the long-term reliability of their electronic products with a rapid rate temperature exchange chamber.
