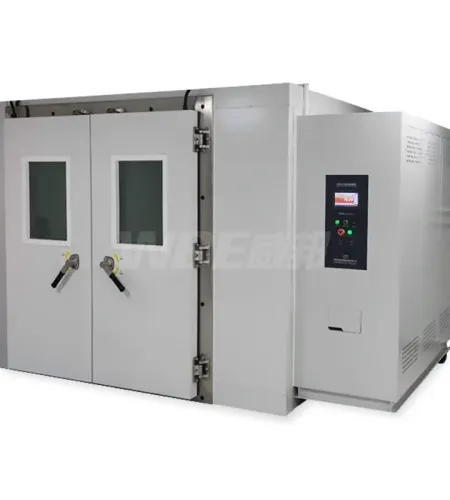

The Ultimate Guide to Large-Scale Walk-In Environmental Chambers.

Designing a walk-in environmental chambers is a complex process with several key considerations. First and foremost is the required internal workspace volume—it must be large enough to accommodate your largest product with adequate clearance on all sides for airflow. The second is the performance specification, including the temperature range, humidity range, and the required temperature change rate. The construction method—modular panel versus welded—is another critical choice that impacts performance, flexibility, and cost. You must also consider the floor construction, which needs to support the weight of the product and any test equipment. Finally, practical considerations like the door size for product access and the integration of any special features like viewing windows, cable ports, or additional safety systems are essential to plan from the beginning for your walk-in environmental chambers.

In a large walk-in environmental chambers, achieving temperature uniformity is far more challenging than in a small chamber, and it is entirely dependent on the airflow system. Without carefully engineered airflow, you will have significant temperature variations—it might be much colder near the air outlet and warmer in a far corner. This would invalidate test results, as different parts of your product would be experiencing different conditions. A high-performance system, like those designed by WBE, uses a powerful conditioning plenum and strategically designed ductwork to create a homogenous, turbulent airflow pattern that blankets the entire workspace. This ensures that the temperature variance within the chamber is kept to a minimum (e.g., ±1.0°C), guaranteeing that your test is accurate, repeatable, and that the data you collect is reliable for your entire product.

A custom walk-in environmental chambers build is a complex project that requires disciplined project management. The WBE process is designed for clarity and success. It starts with the quotation and design phase, where our application engineers work with you to define all specifications and create a detailed proposal. Once approved, the project moves to the engineering and manufacturing phase, where our team creates detailed drawings and fabricates all components at our factory. Throughout this phase, you will receive regular progress updates. The installation phase is meticulously planned, with our field team coordinating with your facilities staff and other contractors. The final commissioning and acceptance phase involves a rigorous site acceptance test (SAT), where we demonstrate that the chamber meets all of its guaranteed performance specifications. This structured project management ensures that your walk-in environmental chambers project is delivered on time, on budget, and to your complete satisfaction.

Performing environmental tests on a full, operational vehicle in a walk-in environmental chambers presents unique challenges. The first is the massive thermal load. A running vehicle generates a significant amount of its own heat, and the chamber's conditioning system must be powerful enough to overcome this and maintain the desired setpoint. The second challenge is managing exhaust fumes. A specialized exhaust extraction system must be integrated with the chamber to safely vent the vehicle's emissions to the outside. Third, the chamber floor must be heavily reinforced to handle the vehicle's point loads from the tires and be equipped with a dynamometer for certain tests. WBE addresses these challenges by engineering our drive-in chambers with oversized cooling systems, integrated exhaust ventilation, and dynamometer-ready floor structures, providing a complete and safe solution for full-vehicle testing in a walk-in environmental chambers.
