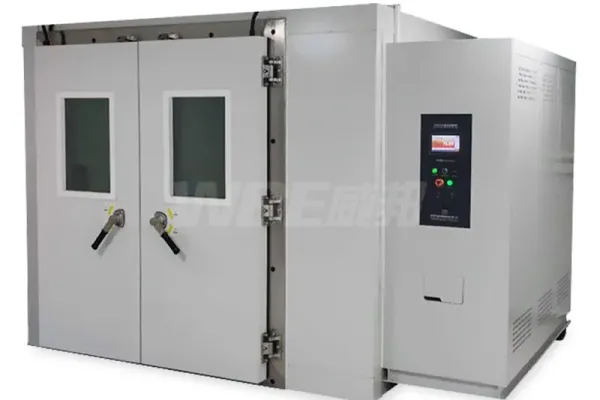

A Buyer's Guide: Choosing the Right Thermal Shock Test Chamber.

For electronic assemblies, a thermal shock test chamber is one of the most critical tools for ensuring long-term reliability. Every circuit board is a complex composite of materials with mismatched CTEs, including the FR-4 substrate, copper traces, solder mask, and various electronic components. As the assembly powers up and heats up, or is exposed to external temperature swings, these materials expand and contract at different rates. This puts a constant strain on the solder joints, which act as both the electrical and mechanical connection for the components. Thermal shock testing accelerates this fatigue mechanism, allowing engineers to quickly assess the lifetime of these critical connections. It is the best way to validate that an assembly's design and manufacturing process are robust enough to survive years of real-world thermal cycling without failure.

The intense stress created by a thermal shock test chamber is excellent at identifying specific types of failure modes. The most common is solder joint fatigue, where the repeated stress causes micro-cracks that eventually lead to an open electrical connection. Cracking of brittle components, such as ceramic capacitors or semiconductor dies, is another frequent failure. For sealed or encapsulated devices, thermal shock is highly effective at identifying hermetic seal failure or delamination, where bonded layers separate. It can also reveal issues with wire bonds, where the expansion and contraction of the wire loop causes stress at the heel or the ball bond. By analyzing these failure modes, engineers can make targeted improvements to their materials and manufacturing processes to create a more robust product.

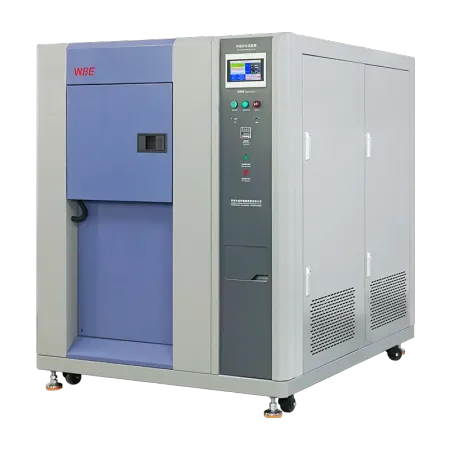

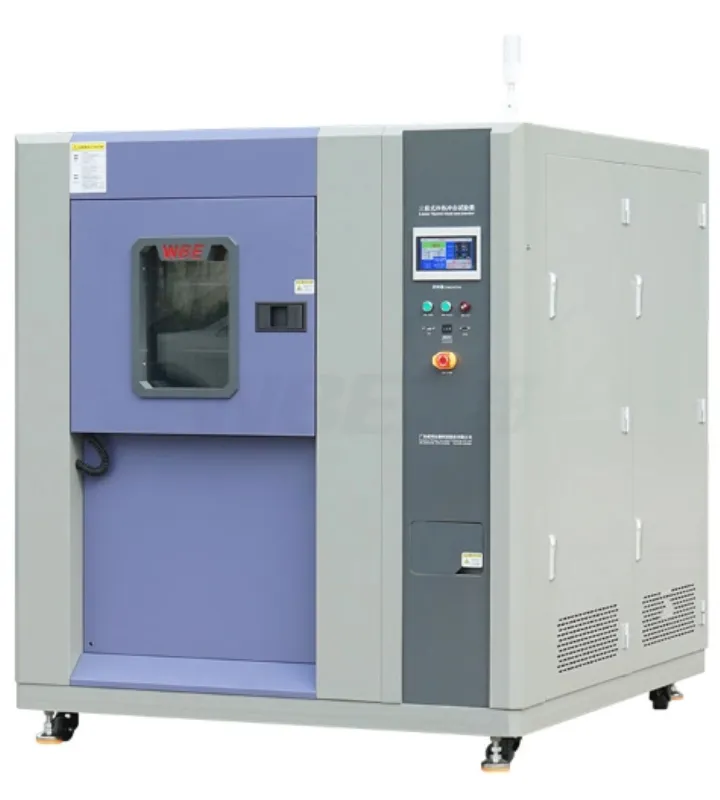

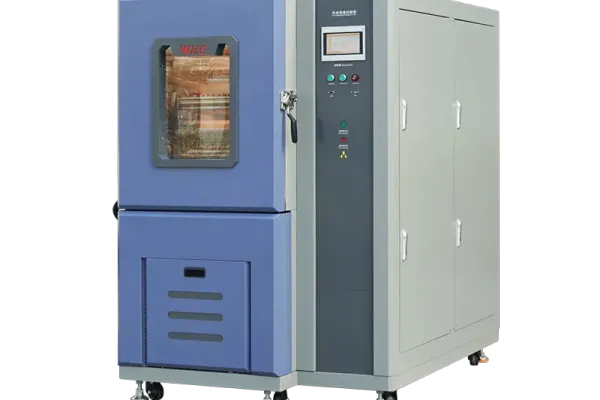

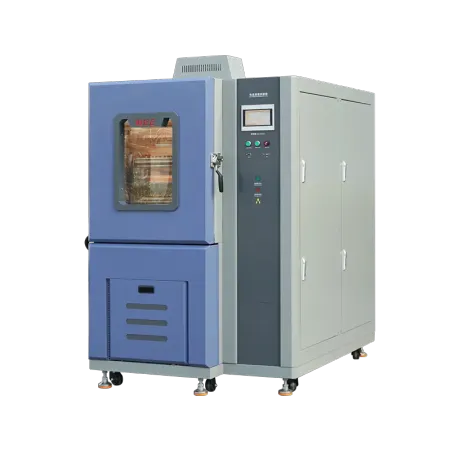

The choice between a thermal shock test chamber and a rapid rate chamber depends on the specific type of thermal stress you need to simulate. A rapid rate chamber uses a single test space and rapidly changes the air temperature around a stationary product, with ramp rates typically between 5°C and 20°C per minute. This is ideal for Environmental Stress Screening (ESS) and for testing a product's response to fast but controlled temperature changes. A thermal shock test chamber, however, provides a much more severe and immediate stress. It physically moves the product between two pre-conditioned temperature zones in seconds, causing a near-instantaneous change in the product's surface temperature. This method is required by many military and aerospace standards and is superior for finding failures related to mismatched thermal expansion coefficients in bonded materials.

Many high-reliability industries have developed standards that mandate the use of a thermal shock test chamber to qualify products. The most well-known is the MIL-STD-883, Method 1010, which is used for military and aerospace microelectronics. The JEDEC standard JESD22-A106 is widely used in the commercial semiconductor industry for testing plastic-encapsulated devices. For the automotive industry, the AEC-Q100 and AEC-Q200 standards for integrated circuits and passive components, respectively, include rigorous thermal shock test requirements. The International Electrotechnical Commission's IEC 60068-2-14 also provides a general guideline for thermal shock testing. WBE designs its thermal shock test chamber portfolio to be fully compliant with the stringent requirements of these and other major international standards.
