Customizing a Chamber for Your Specific Test Profile.

The intense stress created by a thermal shock test chamber is excellent at identifying specific types of failure modes. The most common is solder joint fatigue, where the repeated stress causes micro-cracks that eventually lead to an open electrical connection. Cracking of brittle components, such as ceramic capacitors or semiconductor dies, is another frequent failure. For sealed or encapsulated devices, thermal shock is highly effective at identifying hermetic seal failure or delamination, where bonded layers separate. It can also reveal issues with wire bonds, where the expansion and contraction of the wire loop causes stress at the heel or the ball bond. By analyzing these failure modes, engineers can make targeted improvements to their materials and manufacturing processes to create a more robust product.

The primary purpose of a thermal shock test chamber is to discover and analyze product failures caused by sudden, extreme temperature changes. Unlike slower thermal cycling, the near-instantaneous temperature change, or "shock," creates immense internal stress within a product, especially at the interface of different materials that expand and contract at different rates (e.g., a silicon chip on a circuit board). This test is designed to quickly precipitate failures that might take a long time to occur under normal operating conditions. It is an aggressive form of accelerated life testing used to verify the ruggedness of components and assemblies, ensuring they are robust enough to survive unexpected, severe thermal events in their intended application, from military hardware to automotive sensors.

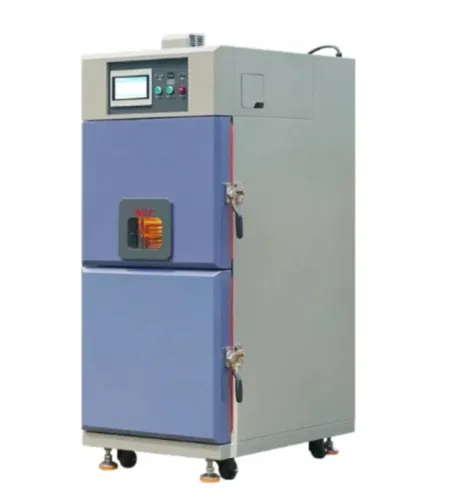

The decision to purchase a two-zone versus a three-zone thermal shock test chamber depends on your testing needs and budget. A two-zone chamber (hot and cold) is the most common and cost-effective solution. It is perfectly suited for performing the majority of standard thermal shock tests where the goal is to transfer a product between two temperature extremes. A three-zone chamber adds an ambient temperature station between the hot and cold zones. This provides greater flexibility, allowing for tests that shock a product from hot to ambient, or from cold to ambient. This can be more energy-efficient if a test does not require the use of both extreme zones. A three-zone model is often preferred by R&D labs that need to run a wider variety of test profiles, while a two-zone thermal shock test chamber is the robust workhorse for high-volume production testing.

A thermal shock test chamber is uniquely effective at revealing hidden flaws because it exploits the physical principle of the Coefficient of Thermal Expansion (CTE). Every material expands and contracts by a different amount when its temperature changes. When two materials with different CTEs are bonded together (like a ceramic component soldered to a fiberglass circuit board), a rapid temperature change forces them to expand or contract at different rates, placing immense stress on the bond between them. This stress can cause microscopic cracks in solder joints, delamination of seals and epoxies, and cracking in brittle components. These are often latent defects that would not be visible or detectable through electrical testing but would eventually lead to a field failure. A thermal shock test chamber accelerates this failure mechanism, making it visible in the lab.
