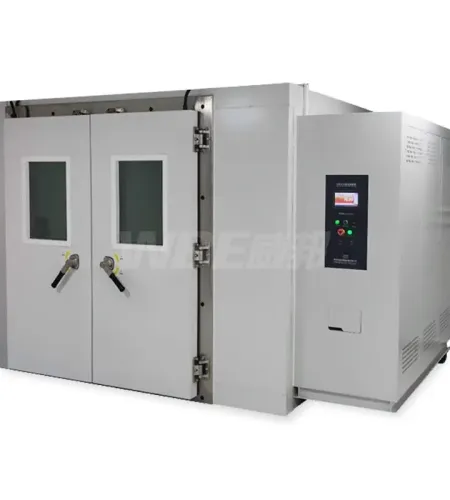

Drive-In Chambers: The Key to Total Vehicle Climate Testing.

In a large walk-in environmental chambers, achieving temperature uniformity is far more challenging than in a small chamber, and it is entirely dependent on the airflow system. Without carefully engineered airflow, you will have significant temperature variations—it might be much colder near the air outlet and warmer in a far corner. This would invalidate test results, as different parts of your product would be experiencing different conditions. A high-performance system, like those designed by WBE, uses a powerful conditioning plenum and strategically designed ductwork to create a homogenous, turbulent airflow pattern that blankets the entire workspace. This ensures that the temperature variance within the chamber is kept to a minimum (e.g., ±1.0°C), guaranteeing that your test is accurate, repeatable, and that the data you collect is reliable for your entire product.

Designing a walk-in environmental chambers is a complex process with several key considerations. First and foremost is the required internal workspace volume—it must be large enough to accommodate your largest product with adequate clearance on all sides for airflow. The second is the performance specification, including the temperature range, humidity range, and the required temperature change rate. The construction method—modular panel versus welded—is another critical choice that impacts performance, flexibility, and cost. You must also consider the floor construction, which needs to support the weight of the product and any test equipment. Finally, practical considerations like the door size for product access and the integration of any special features like viewing windows, cable ports, or additional safety systems are essential to plan from the beginning for your walk-in environmental chambers.

Walk-in environmental chambers are used when the item to be tested is too large, too heavy, or too numerous for a standard reach-in chamber. Their primary use is for system-level testing of large, fully assembled products. The automotive industry uses them as "drive-in" chambers to test complete vehicles under various climate conditions. The aerospace industry tests large satellite dishes, wing sections, and avionics racks. In renewable energy, they are used to test large solar panels and grid-scale battery storage systems. Another common use is for batch testing, where racks of smaller components can be placed inside and tested simultaneously for greater throughput. Essentially, a walk-in environmental chambers provides the ability to understand how a large, complex system or a large quantity of products will perform when subjected to environmental stresses like temperature and humidity.

The choice between modular and welded construction for your walk-in environmental chambers depends on your specific performance needs and long-term plans. Modular construction uses prefabricated insulated panels that are mechanically locked together. This is the most common and versatile method, offering a good balance of performance and cost. Its key advantage is flexibility; a modular chamber can be expanded, downsized, or even relocated in the future. Welded construction features a continuously welded, vapor-proof stainless steel interior liner. This method provides the highest level of performance and durability, and it is the required choice for extreme conditions such as very high humidity, rapid temperature cycling, or altitude simulation where a perfect seal is critical to prevent moisture intrusion or air leaks. WBE's experts can help you analyze this trade-off to select the right construction for your walk-in environmental chambers.
