Why a Thermal Shock Test Chamber is the Ultimate Reliability Tool.

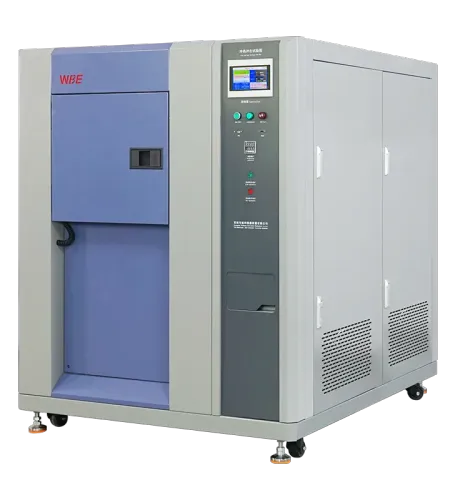

When evaluating a thermal shock test chamber, two specifications are paramount: transfer time and recovery time. Transfer time is the total time it takes for the product basket to move from one temperature zone to the other. Most industry standards, such as MIL-STD-883, require this to be extremely fast, typically under 10 seconds, to ensure a true "shock" is delivered. Recovery time is the time it takes for the zone's air temperature to return to its specified setpoint after the product has been introduced. For example, when the cold product enters the hot zone, the air temperature will temporarily drop. A powerful thermal shock test chamber, like those made by WBE, has a short recovery time, ensuring the product is exposed to the correct temperature for the required duration of the test.

A thermal shock test chamber is uniquely effective at revealing hidden flaws because it exploits the physical principle of the Coefficient of Thermal Expansion (CTE). Every material expands and contracts by a different amount when its temperature changes. When two materials with different CTEs are bonded together (like a ceramic component soldered to a fiberglass circuit board), a rapid temperature change forces them to expand or contract at different rates, placing immense stress on the bond between them. This stress can cause microscopic cracks in solder joints, delamination of seals and epoxies, and cracking in brittle components. These are often latent defects that would not be visible or detectable through electrical testing but would eventually lead to a field failure. A thermal shock test chamber accelerates this failure mechanism, making it visible in the lab.

The intense stress created by a thermal shock test chamber is excellent at identifying specific types of failure modes. The most common is solder joint fatigue, where the repeated stress causes micro-cracks that eventually lead to an open electrical connection. Cracking of brittle components, such as ceramic capacitors or semiconductor dies, is another frequent failure. For sealed or encapsulated devices, thermal shock is highly effective at identifying hermetic seal failure or delamination, where bonded layers separate. It can also reveal issues with wire bonds, where the expansion and contraction of the wire loop causes stress at the heel or the ball bond. By analyzing these failure modes, engineers can make targeted improvements to their materials and manufacturing processes to create a more robust product.

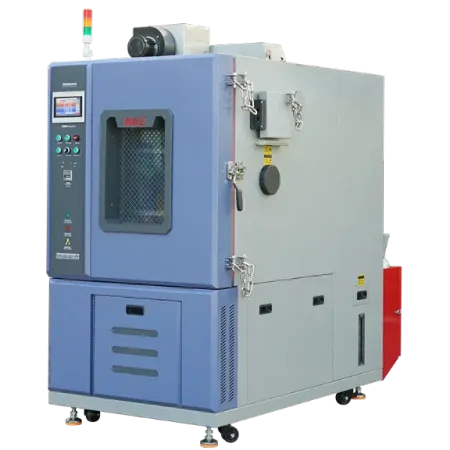

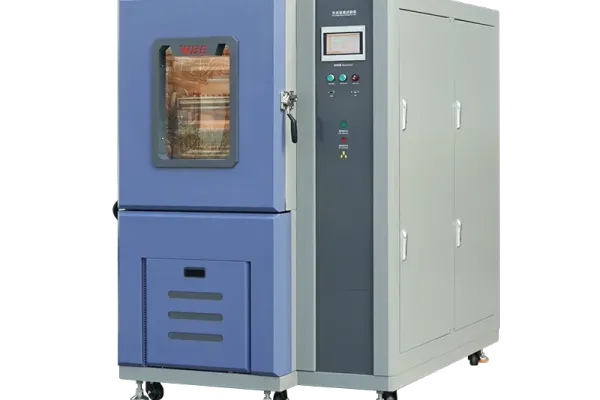

The choice between a thermal shock test chamber and a rapid rate chamber depends on the specific type of thermal stress you need to simulate. A rapid rate chamber uses a single test space and rapidly changes the air temperature around a stationary product, with ramp rates typically between 5°C and 20°C per minute. This is ideal for Environmental Stress Screening (ESS) and for testing a product's response to fast but controlled temperature changes. A thermal shock test chamber, however, provides a much more severe and immediate stress. It physically moves the product between two pre-conditioned temperature zones in seconds, causing a near-instantaneous change in the product's surface temperature. This method is required by many military and aerospace standards and is superior for finding failures related to mismatched thermal expansion coefficients in bonded materials.
