How to Interpret Failure Modes from a Thermal Shock Test.

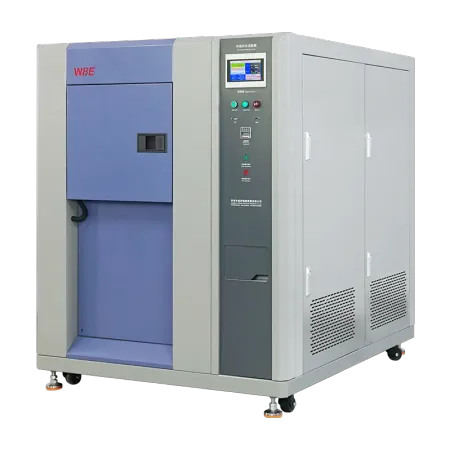

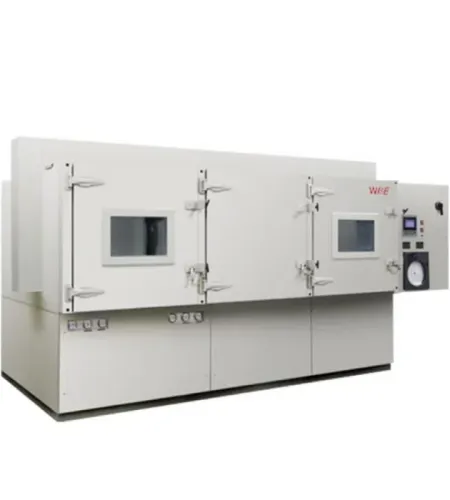

WBE's leadership in thermal shock test chamber technology is the result of a focused engineering approach that prioritizes performance and reliability. Our advantage stems from our mastery of the three critical elements of thermal shock: the transfer mechanism, the thermal systems, and the control intelligence. Our transfer mechanisms are designed for speed and durability, ensuring MIL-STD compliant transfers, cycle after cycle. Our thermal systems utilize powerful, oversized compressors and heaters that are optimized for the fastest possible temperature recovery times, a key performance metric. Finally, our control intelligence uses advanced algorithms to precisely manage the entire process, ensuring repeatable and accurate test execution. This synergistic combination of robust mechanics, powerful thermal performance, and intelligent control is what makes a WBE thermal shock test chamber the preferred choice for companies that demand the highest level of testing confidence.

The intense stress created by a thermal shock test chamber is excellent at identifying specific types of failure modes. The most common is solder joint fatigue, where the repeated stress causes micro-cracks that eventually lead to an open electrical connection. Cracking of brittle components, such as ceramic capacitors or semiconductor dies, is another frequent failure. For sealed or encapsulated devices, thermal shock is highly effective at identifying hermetic seal failure or delamination, where bonded layers separate. It can also reveal issues with wire bonds, where the expansion and contraction of the wire loop causes stress at the heel or the ball bond. By analyzing these failure modes, engineers can make targeted improvements to their materials and manufacturing processes to create a more robust product.

The choice between a thermal shock test chamber and a rapid rate chamber depends on the specific type of thermal stress you need to simulate. A rapid rate chamber uses a single test space and rapidly changes the air temperature around a stationary product, with ramp rates typically between 5°C and 20°C per minute. This is ideal for Environmental Stress Screening (ESS) and for testing a product's response to fast but controlled temperature changes. A thermal shock test chamber, however, provides a much more severe and immediate stress. It physically moves the product between two pre-conditioned temperature zones in seconds, causing a near-instantaneous change in the product's surface temperature. This method is required by many military and aerospace standards and is superior for finding failures related to mismatched thermal expansion coefficients in bonded materials.

A thermal shock test chamber is a high-performance piece of industrial equipment with significant facility requirements. Due to the powerful compressors and heaters needed for fast temperature recovery, these chambers demand a substantial three-phase electrical supply. The refrigeration systems generate a large amount of waste heat, which must be removed, typically requiring a connection to a facility's process chilled water loop. A source of clean, dry compressed air is also needed to actuate the pneumatic transfer mechanism that moves the product basket between zones. Finally, the physical footprint and weight of the chamber must be considered to ensure it can be safely installed in the desired location. WBE provides detailed pre-installation guides to help clients prepare their facilities and ensure a smooth setup of their thermal shock test chamber.
