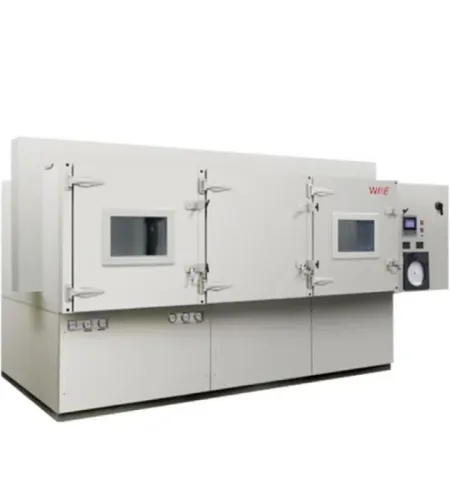

A Buyer's Guide: Choosing the Right Thermal Shock Test Chamber.

The decision to purchase a two-zone versus a three-zone thermal shock test chamber depends on your testing needs and budget. A two-zone chamber (hot and cold) is the most common and cost-effective solution. It is perfectly suited for performing the majority of standard thermal shock tests where the goal is to transfer a product between two temperature extremes. A three-zone chamber adds an ambient temperature station between the hot and cold zones. This provides greater flexibility, allowing for tests that shock a product from hot to ambient, or from cold to ambient. This can be more energy-efficient if a test does not require the use of both extreme zones. A three-zone model is often preferred by R&D labs that need to run a wider variety of test profiles, while a two-zone thermal shock test chamber is the robust workhorse for high-volume production testing.

The choice between a thermal shock test chamber and a rapid rate chamber depends on the specific type of thermal stress you need to simulate. A rapid rate chamber uses a single test space and rapidly changes the air temperature around a stationary product, with ramp rates typically between 5°C and 20°C per minute. This is ideal for Environmental Stress Screening (ESS) and for testing a product's response to fast but controlled temperature changes. A thermal shock test chamber, however, provides a much more severe and immediate stress. It physically moves the product between two pre-conditioned temperature zones in seconds, causing a near-instantaneous change in the product's surface temperature. This method is required by many military and aerospace standards and is superior for finding failures related to mismatched thermal expansion coefficients in bonded materials.

A thermal shock test chamber is uniquely effective at revealing hidden flaws because it exploits the physical principle of the Coefficient of Thermal Expansion (CTE). Every material expands and contracts by a different amount when its temperature changes. When two materials with different CTEs are bonded together (like a ceramic component soldered to a fiberglass circuit board), a rapid temperature change forces them to expand or contract at different rates, placing immense stress on the bond between them. This stress can cause microscopic cracks in solder joints, delamination of seals and epoxies, and cracking in brittle components. These are often latent defects that would not be visible or detectable through electrical testing but would eventually lead to a field failure. A thermal shock test chamber accelerates this failure mechanism, making it visible in the lab.

A thermal shock test chamber is a high-performance piece of industrial equipment with significant facility requirements. Due to the powerful compressors and heaters needed for fast temperature recovery, these chambers demand a substantial three-phase electrical supply. The refrigeration systems generate a large amount of waste heat, which must be removed, typically requiring a connection to a facility's process chilled water loop. A source of clean, dry compressed air is also needed to actuate the pneumatic transfer mechanism that moves the product basket between zones. Finally, the physical footprint and weight of the chamber must be considered to ensure it can be safely installed in the desired location. WBE provides detailed pre-installation guides to help clients prepare their facilities and ensure a smooth setup of their thermal shock test chamber.
