Secure Your Reputation with Verifiable Bond Strength Data.

Selecting the right push-pull testing machine requires a careful evaluation of your specific applications. First, identify the types of tests you need (e.g., wire pull, die shear, ball shear). This will determine the required test modules or heads. Second, determine the force ranges needed for each test. A machine used for fine gold wire will need a very sensitive low-force sensor, while a machine for large die shear will need a high-force capability. Look for a system with interchangeable load cell cartridges for maximum flexibility. Third, consider the level of automation and the required throughput. Manual or motorized stages may be sufficient for a lab, while a fully automated system might be needed for high-volume production. Finally, evaluate the software capabilities, ensuring it can perform the necessary analysis and generate reports that meet your quality standards. Consulting with an expert at WBE can help you navigate these options to configure the perfect push-pull testing machine.

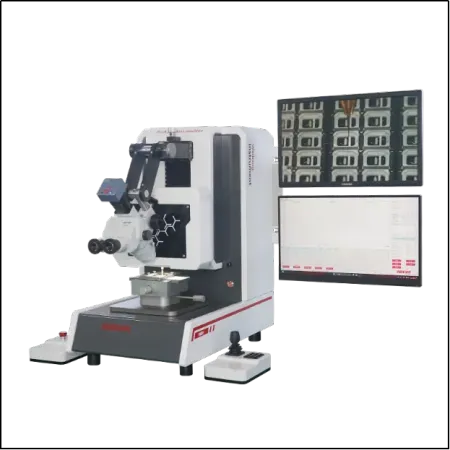

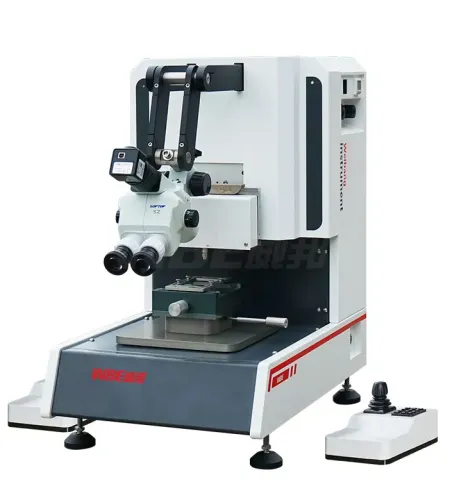

A push-pull testing machine, known in the industry as a bond tester, is a specialized instrument used to measure the mechanical strength of the tiny connections inside electronic and semiconductor devices. Its primary purpose is to perform quality control by applying precise push (shear) or pull (tensile) forces to these connections until they fail, thus determining their strength. Key applications include wire bond pull testing, where it hooks and pulls a wire to ensure it is properly attached; ball shear testing, where it pushes on a solder ball to test its adhesion to a circuit board pad; and die shear testing, which measures the strength of the adhesive holding a silicon chip onto its package substrate. This data is critical for manufacturers to ensure their products are robust enough to withstand the stresses of assembly and everyday use, preventing field failures and ensuring long-term reliability.

Given the extremely small forces being measured, regular and proper calibration of a push-pull testing machine is absolutely essential for data integrity. Calibration is the process of comparing the machine's measurements to a known, traceable standard to ensure its accuracy. This should be performed on a regular schedule, typically annually, by a qualified technician. The process involves using a set of certified micro-weights to verify the accuracy of the load cell across its entire operating range. The positioning accuracy of the X, Y, and Z stages may also be verified using precision instruments. Without this regular verification, there is no guarantee that the force readings from the push-pull testing machine are correct, which can invalidate test results and compromise quality control. WBE offers accredited calibration services to ensure our clients' machines continuously operate at their peak specified accuracy.

As integrated circuit (IC) packaging evolves towards 3D-ICs, stacked dies, and System-in-Package (SiP) designs, the challenges for testing also increase. WBE's advanced push-pull testing machine solutions are engineered to meet these challenges. For stacked die applications, we offer specialized deep-access tooling to perform shear tests on the lower dies without interference. For fine-pitch and high-density wire bonding, our high-magnification optics and precise motion control allow for accurate testing of even the most challenging geometries. Our software is designed to handle complex test routines, allowing for different tests to be performed on a single device in one program. By continuously innovating and working with industry leaders, WBE ensures that our push-pull testing machine capabilities keep pace with the advancements in semiconductor technology, providing our clients with the tools they need to validate their most complex and valuable products.
